In Bendigo, we often see builders assume the old gold-bearing gravels will support anything. That assumption can cause real problems. The city sits on a mix of Ordovician bedrock, alluvial clays along Bendigo Creek, and colluvial soils on the steeper slopes. Each of these materials responds differently under load. A reliable bearing capacity analysis in Bendigo starts with understanding that variability. We combine test pits, SPT, and plate load tests to measure actual soil stiffness. For sites near the creek, we also check for soft compressible layers. Before you pour any concrete, a proper ensayo de placa de carga on site gives you real numbers, not textbook guesses.

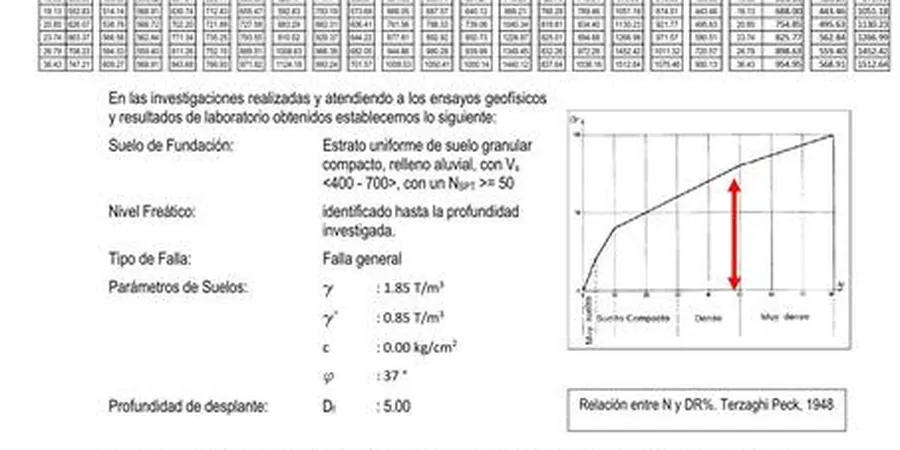

Illustrative image of Capacidad de carga in Bendigo

The difference between a weathered rock cap and a soft clay lens in Bendigo can be just a few metres. That is why we test in multiple locations.

Methodology and scope

A common mistake we see is contractors relying on a single soil log from one borehole. That rarely captures the lateral variability across a site in Bendigo. The difference between a weathered rock cap and a soft clay lens can be just a few metres. A thorough bearing capacity analysis in Bendigo uses multiple investigation points and accounts for groundwater fluctuations. We measure parameters like undrained shear strength, friction angle, and modulus of subgrade reaction. When we suspect deeper weaknesses, we combine SPT results with ensayos de permeabilidad en campo to check for water-driven settlement risks. Our team follows AS 1726:2017 for site classification and AS 4678:2002 for earth retaining structures. The outcome is a bearing capacity value that matches the real ground conditions, not a regional average.

Local considerations

If you compare the alluvial flats near Lake Weeroona with the rocky ridges around White Hills, the contrast is stark. On the flats, we have found soft silty clays extending 6 metres deep. On the ridges, weathered sandstone can be at just 1 metre. A generic bearing capacity analysis in Bendigo that ignores these local variations leads to over-designed foundations on the ridges or under-designed ones in the lowlands. The risk is differential settlement — cracks in walls, uneven floors, and costly structural repairs. We always map the geology across the property before giving a bearing capacity number. It saves money and avoids headaches later.

Technical parameters

Parameter	Typical value
Undrained shear strength (cu)	20 – 300 kPa depending on clay consistency
Friction angle (phi')	25 – 42 degrees for granular soils and weathered rock
Modulus of subgrade reaction (k)	10 – 80 MN/m³ for typical founding materials
Allowable bearing capacity (q_allow)	100 – 600 kPa for shallow foundations on competent strata
SPT N-value (corrected)	4 – 50+ blows/300mm across typical Bendigo profiles

Associated technical services

Shallow Foundation Bearing Capacity Assessment

We perform plate load tests, DCP tests, and test pits to determine allowable bearing pressure for strip footings and pads. Suitable for residential and light commercial projects on competent ground. Includes settlement estimation.

Deep Foundation Bearing Capacity Analysis

For sites with soft upper layers or high loads, we calculate end-bearing and skin friction resistance using SPT and CPT data. We also assess pile group efficiency and negative skin friction where applicable. Common on Bendigo's creek flats.

Frequently asked questions

What is the difference between allowable bearing capacity and ultimate bearing capacity?

Ultimate bearing capacity is the maximum stress the soil can take before shear failure. Allowable bearing capacity is that value divided by a factor of safety (usually 2.5 to 3.0) to keep foundations within a safe working range. We report both in our analysis for Bendigo sites.

How much does a bearing capacity analysis cost in Bendigo?

For a typical residential block with 2–3 test pits and a plate load test, the cost ranges between AU$1,060 and AU$2,340. Larger commercial sites with multiple boreholes and laboratory testing fall at the higher end. We provide a fixed quote after a site visit.

Do you need a bearing capacity analysis for a retaining wall in Bendigo?

Yes. Even a low retaining wall needs to know the soil's capacity to support the base and resist sliding. In Bendigo's clay zones, we also check for swelling pressure. Our analysis includes both vertical bearing and lateral resistance per AS 4678:2002.
