Bendigo grew rapidly during the gold rush, and that history still shapes its ground conditions today. Old mining voids, variable alluvial fills, and stiff clay caps mean the subgrade beneath a new road can change dramatically within metres. For any flexible pavement design in Bendigo, understanding those local quirks is essential — a generic CBR value from a statewide table simply won't cut it. We start every project by correlating historic mine records with targeted site investigation, so the pavement thickness you choose actually matches what's underneath. That approach has saved several developments from costly over-design or premature failure. Before setting up the pavement section, we often combine the subgrade evaluation with a drainage geotechnical study to keep water away from the base layers, and with a plate load test to verify the in-situ stiffness at formation level.
The subgrade modulus you assume for flexible pavement design in Bendigo must reflect the extreme variability left by historical mining across the city.
Methodology and scope
At 220 metres above sea level, Bendigo sits on the edge of the Victorian goldfields, an area where the weathered bedrock depth can range from less than a metre to over eight metres in adjacent blocks. That variability directly affects the subgrade modulus you can assume for flexible pavement design in Bendigo. In our experience, the most reliable approach is to run a series of CBR tests on undisturbed samples taken at the proposed pavement depth, then cross-check those results with a deflection survey on existing pavements nearby. The key parameters we evaluate include:
Soaked and unsoaked CBR for subgrade and select fill layers
Dynamic cone penetrometer (DCP) profiles to estimate layer moduli
Particle size distribution and Atterberg limits for material classification
Compaction characteristics (Standard or Modified Proctor) to set density targets
Each of these feeds into the mechanistic-empirical design method we apply, which follows the Austroads Pavement Design Guide. Complementing the pavement analysis with a subgrade stabilisation study can also reduce the required layer thickness when the natural soil is problematic.

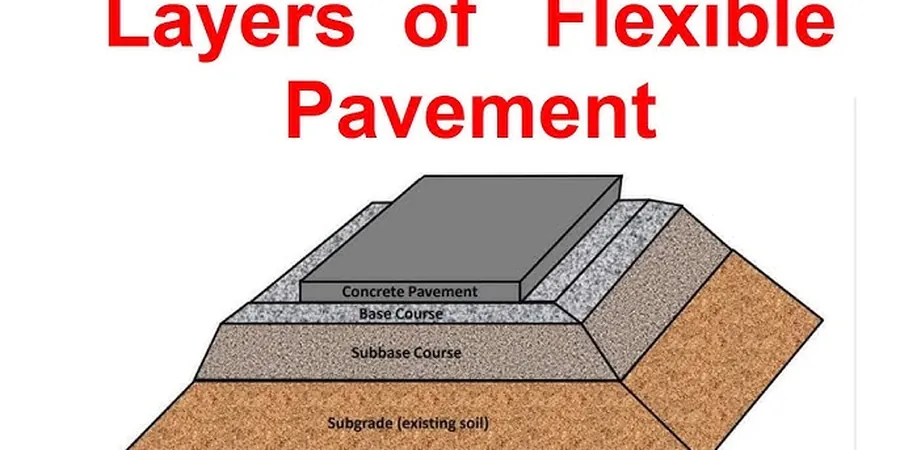

Technical reference image — Bendigo
Local considerations
A few years back we reviewed a failed car park in central Bendigo where the pavement had been designed assuming a uniform CBR of 5%. The problem was that half the site sat on old quartz-mullock fill from an 1880s mine and the other half on intact clay. Within two years the asphalt cracked along the transition line, water got in, and the whole base disintegrated. That scenario repeats whenever the site history is ignored. For any flexible pavement design in Bendigo, the real risk is not the low CBR itself — it is the sudden change in CBR across a short distance. You can manage that by mapping the subgrade with enough boreholes or test pits to catch the transitions, then designing each pavement section accordingly. A single representative value for the whole block is rarely safe.
Field sampling, laboratory CBR at soaked and unsoaked conditions, DCP profiling, and material classification. We provide a clear subgrade zonation map with recommended design CBR values per zone, so you can optimise pavement thickness without guessing.
02
Pavement Structural Design Report
Mechanistic-empirical analysis integrating traffic load data, subgrade modulus, and material properties. The report includes layer thickness recommendations, alternative design options, and a sensitivity analysis for variable subgrade conditions typical of Bendigo.
Applicable standards
Austroads Guide to Pavement Technology Part 2: Pavement Structural Design (AGPT02-21), AS 1726:2017 Geotechnical Site Investigations, AS 1289.6.1.1 (CBR Test), AS 1289.6.1.1 Methods for Compaction Control
Frequently asked questions
What is the typical cost range for a flexible pavement design study in Bendigo?
For a standard urban road project in Bendigo, the geotechnical investigation and pavement design report typically ranges between AU$2.630 and AU$6.960, depending on the number of test pits, laboratory tests, and the complexity of the subgrade variation across the site.
How do old mining voids affect flexible pavement design in Bendigo?
Historic shallow mining left loose backfill and voids that can cause sudden settlement under traffic loads. We identify these through boreholes and if needed, geophysical surveys. The design then accounts for lower subgrade support in those zones, sometimes requiring a thicker base or a geogrid reinforcement layer to bridge the soft spots.
What CBR value should I use if I have no site-specific data for Bendigo?
Without local testing, assuming a soaked CBR of 3% for the stiff clay subgrade typical in Bendigo is a conservative starting point. However, we strongly recommend at least three in-situ CBR tests per site because the variability across a single block can easily range from 2% to 8%.
