Deep soil mixing (DSM) design in Bendigo follows AS 4678-2002 for earth-retaining structures and AS 1726-2017 for geotechnical site investigations. The city sits on an alluvial plain underlain by Ordovician bedrock, with variable Quaternary sediments that include soft clays, silts, and loose sands. These conditions demand a ground-improvement method that can treat a column of soil to depths of 20 m or more. DSM columns installed in a grid pattern create a composite mass with higher stiffness and reduced permeability. Before mobilising the mixing rig, we always complete a thorough site investigation using calicatas exploratorias to log soil strata and confirm the presence of any buried obstructions.
A well-designed DSM grid can cut total settlement by up to 60% and halve the time needed for surcharge preloading on soft estuarine clays.
Methodology and scope
Bendigo’s population reached around 120,000 in the 2021 census, and the urban footprint has expanded over former gold-mining tailings and reclaimed creek beds. These fills are notoriously variable. DSM design parameters here typically assume an unconfined compressive strength of 0.5–2.0 MPa for the treated soil column, depending on binder dosage and moisture content. We calibrate the mix design using site-specific samples and a laboratory trial program. The binder is usually a blend of Portland cement and ground granulated blast-furnace slag, injected as a wet slurry through a hollow-stem auger. For projects requiring continuous strength profiling, we combine DSM with an ensayo CPT to verify improvement along the entire column length.

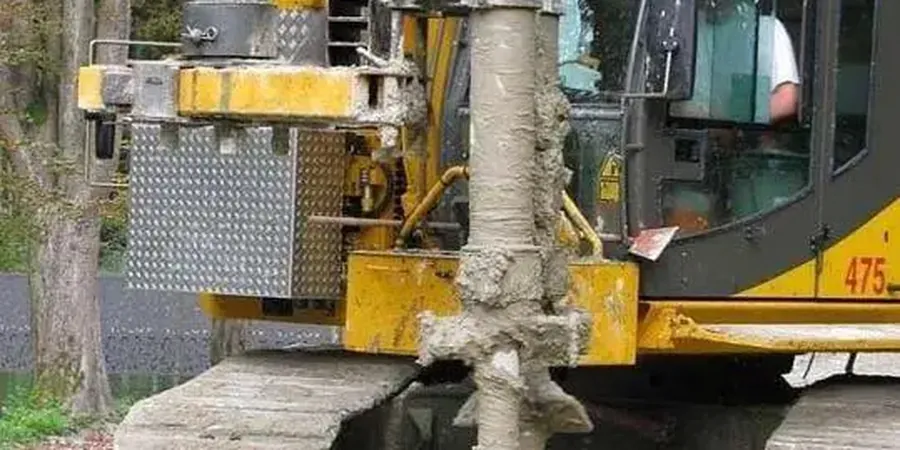

Technical reference image — Bendigo
Local considerations
Bendigo’s development since the 1850s gold rush has left a legacy of shallow mine workings, backfilled shafts, and unrecorded underground voids. These features can cause sudden collapse or differential settlement if not identified before ground improvement. A DSM program that ignores these anomalies risks injecting binder into open cavities rather than into the soil matrix. We always combine historical mine-plan review with geophysical surveys such as georradar GPR to map shallow voids before the DSM rig arrives. This layered approach reduces the chance of ground loss and ensures that the treated mass performs as designed under service loads.
We prepare soil-binder specimens at varying dosages and cure them under controlled conditions. Unconfined compressive strength, permeability, and stiffness are measured at 7, 14, and 28 days to select the optimal binder blend for your Bendigo site.
02
Column Layout & Structural Design
Using finite-element software (PLAXIS 2D/3D), we model the improved ground as a composite material. Column spacing, diameter, and depth are optimised to limit total and differential settlement to within project tolerances, typically 10–25 mm.
03
On-Site Quality Control & Verification
During installation, we monitor binder flow rate, mixing energy, and withdrawal speed. After curing, we extract continuous core samples and perform in-situ strength testing to confirm that the DSM columns meet the specified design parameters.
Applicable standards
AS 4678-2002: Earth-retaining structures, AS 1726-2017: Geotechnical site investigations, AS/NZS 1170.0:2002: Structural design actions – general principles, FHWA-HRT-13-046: Deep Mixing for Embankment and Foundation Support
Frequently asked questions
What is the typical cost range for deep soil mixing design in Bendigo?
For a standard DSM design package covering mix trials, column layout, and settlement analysis, the fee typically falls between AU$2.500 and AU$9.500. The final cost depends on the depth of treatment, number of trial mixes, and whether geophysical surveys are needed to locate old mine workings.
How deep can DSM columns be installed in Bendigo's alluvial soils?
Most DSM rigs can reach 20–25 m in the soft clays and silts found beneath Bendigo. Where the Ordovician bedrock is shallower, the treatment depth is limited by the refusal of the mixing tool; we then adapt the design to a partial-depth improvement strategy.
Can DSM be used to treat liquefaction-prone ground in Bendigo?
Yes. The treated soil columns increase the overall density and stiffness of the ground, reducing the cyclic shear strain during an earthquake. We follow the NCEER (1997) guidelines to evaluate the post-treatment factor of safety against liquefaction, which typically rises above 1.3 after DSM.
What binders are recommended for DSM in Bendigo's clay-rich soils?
A blend of general-purpose Portland cement and ground granulated blast-furnace slag (50:50 or 60:40) works well in the local high-plasticity clays. The slag reduces heat of hydration and improves long-term strength gain. We always verify the mix with laboratory trials before full-scale production.
