Bendigo grew rapidly during the 1850s gold rush, leaving a legacy of shallow mine workings, shafts, and adits beneath the modern city. These historical voids pose a real risk to new foundations and underground services. A GPR (Ground Penetrating Radar) survey in Bendigo is the most efficient way to detect these anomalies without drilling. The technique uses high-frequency electromagnetic pulses to image the upper 3-5 metres of soil and rock, revealing pipes, cavities, and changes in strata. For deeper targets or where soil conditions limit radar penetration, combining GPR with a calicatas exploratorias provides ground-truth calibration of the geophysical anomalies.
Historical gold mining left thousands of undocumented shafts beneath Bendigo; GPR detects those voids before they become foundation failures.
Methodology and scope
The climate around Bendigo is semi-arid, with dry summers and clay-rich soils that shrink and swell seasonally. This desiccation creates a high-contrast dielectric boundary near the surface, which can mask deeper targets in routine GPR surveys. Our team compensates by using dual-frequency antennas — 400 MHz for utility detection and 200 MHz for deeper geological structures. The local geology, dominated by Ordovician turbidites and Quaternary alluvium along Bendigo Creek, produces strong radar reflections at lithological contacts. When mapping these complex profiles, we cross-reference results with ensayo SPT to correlate radar facies with actual penetration resistance, and with permeabilidad de campo to assess how groundwater affects signal attenuation.

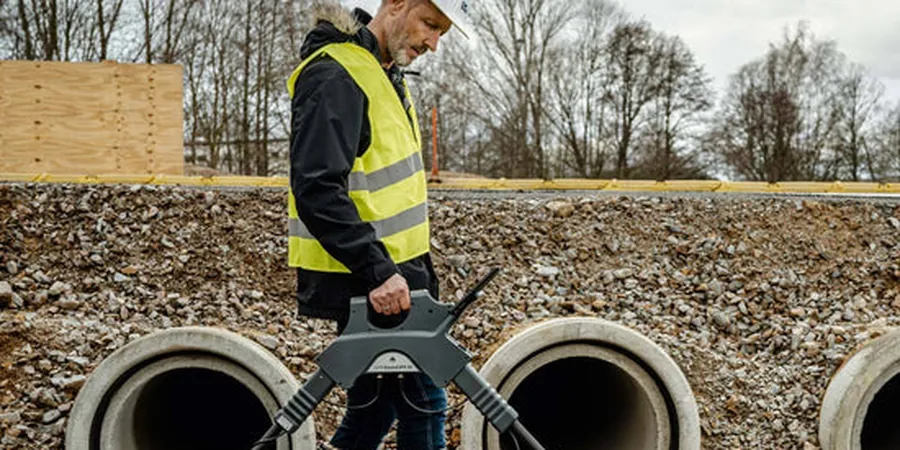

Technical reference image — Bendigo
Local considerations
Compare the inner suburbs of Bendigo — like Golden Square — where alluvial gold was worked from the 1860s, with the newer estates in Strathfieldsaye. In the older areas, unrecorded stopes and drives exist within 3 m of the surface, often backfilled with loose material. A GPR survey in Bendigo identifies these low-density zones clearly. In Strathfieldsaye, the risk shifts to paleochannels filled with soft clay that cause differential settlement. Without radar imaging, a contractor might pile through competent rock only to hit a buried channel. The technique flags these hazards before the excavator arrives.
Locate buried pipes, cables, and undocumented mine shafts before excavation. We deliver georeferenced plans showing depth, size, and orientation of each target, using GPS-tagged radargrams.
02
Geological Profiling for Foundations
Map depth to bedrock, identify paleochannels, and detect cavities in limestone or weathered rock. The survey covers up to 1 ha per day with 0.5 m line spacing, producing a 3D subsurface model.
Applicable standards
AS 1726 – Geotechnical site investigations (referenced for anomaly classification), AS 1289.7.3 – Standard Guide for Using GPR for Subsurface Investigation, AS/NZS 1170.0 – Structural design actions (site class assessment via GPR)
Frequently asked questions
How deep can GPR penetrate in the soils around Bendigo?
In the dry sands and gravels of the Bendigo Creek alluvium, penetration reaches 6-8 m. In the clay-rich residual soils of Golden Square, depth drops to 3-4 m. We select the antenna frequency based on the target depth and local soil conductivity.
Can GPR detect old gold mine shafts under existing buildings?
Yes, provided there is ground access. We survey through concrete slabs up to 200 mm thick. The radar signal reflects off the air-filled void or the backfill-soil interface. We have mapped shafts as narrow as 0.6 m in Bendigo's central business district.
Do I need a permit to run a GPR survey on public land in Bendigo?
For footpaths and roads within the City of Greater Bendigo, a minor works permit is required. We handle the application process. Private land requires no permit beyond owner consent.
How much does a GPR survey cost for a typical residential block in Bendigo?
For a standard 700 m² block with utility mapping, the cost ranges from AU$1,650 to AU$2,400. Geological profiling for foundation design on a 1,000 m² lot runs between AU$2,800 and AU$4,200. Prices vary with site access and target density.
