When we first set up our rigs for a sheet pile wall design in Bendigo, the ground conditions vary widely from the alluvial flats near Bendigo Creek to the granite-derived soils on the city's northern outskirts. Our crew typically mobilizes a tracked excavator fitted with a vibratory hammer to drive test piles, checking refusal depths and soil response before finalizing the wall embedment. This on-site validation is critical because the depth to bedrock can shift dramatically across a single block. We coordinate closely with the project team to integrate the calicatas exploratorias data, ensuring the sheet pile toe reaches competent bearing strata. The whole process demands real-time decisions, not just textbook assumptions.
Historic mine workings beneath Bendigo mean sheet pile wall design must account for hidden voids and variable fill, not just soil strength.
Methodology and scope
Bendigo's gold rush history left a legacy of shallow mine workings and variable fill that directly affects modern sheet pile installations. Many sites along the old reef lines have backfilled shafts or adits that can cause sudden loss of driving resistance. For this reason, our sheet pile wall design in Bendigo always starts with a thorough review of historical mining records, combined with targeted ensayo SPT to locate any hidden voids. Where the water table sits high, typically within 2-3 meters of the surface near the Bendigo Creek corridor, we factor in hydrostatic pressures and the potential for seepage-induced instability. The design also considers the stiff clay layers that can cause pile refusal if not pre-augered, so we frequently recommend ensayo CPT to map stratigraphy continuously along the wall alignment. These local nuances make every design unique.

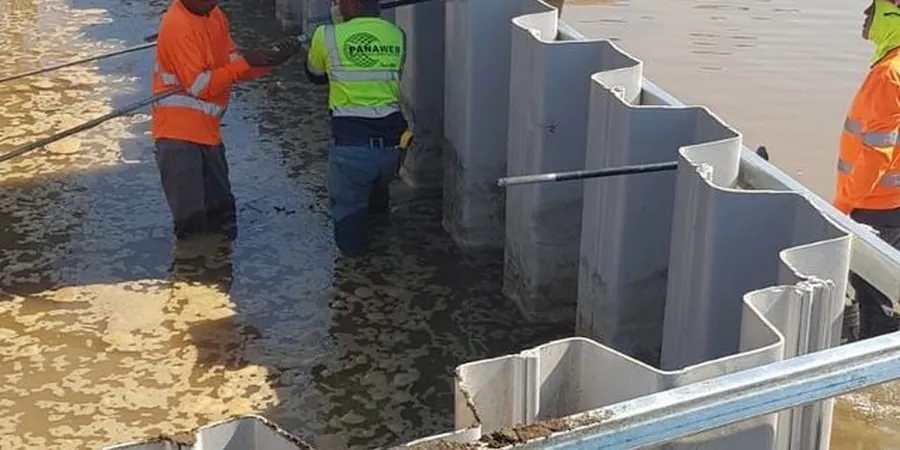

Technical reference image — Bendigo
Local considerations
The dominant geological risk for sheet pile wall design in Bendigo is the presence of uncontrolled fill and old mine workings. These materials can collapse under driving loads, causing the pile to lose lateral support or punch into voids. We've seen cases where a wall designed for dense clay suddenly encountered a filled stope at 6 meters depth, requiring an immediate redesign. The water table also fluctuates seasonally, with some areas showing perched aquifers in the upper 2 meters after heavy rain. Without a proper estudio de mecánica de suelos that includes a detailed void assessment, the wall may face excessive deflection or even catastrophic failure during excavation on the active side.
Boreholes, test pits, and in-situ testing to characterize the soil profile, locate voids, and measure groundwater conditions. We follow AS 1726 to ensure reliable data for your wall design.
02
Structural Wall Design & Analysis
Using limit equilibrium and finite element methods, we compute lateral earth pressures, water pressures, and surcharge loads per AS 4678. Designs include cantilever, anchored, and propped configurations.
03
Construction Support & Monitoring
We provide on-site engineering supervision during pile driving, inclinometer monitoring for wall deflection, and real-time adjustments to the design if unexpected ground conditions are encountered.
04
Corrosion & Durability Assessment
Evaluation of soil corrosivity, pH, and resistivity to determine the required corrosion allowance and coating specifications for the sheet piles, ensuring a 50-year or longer service life.
Applicable standards
AS 4678-2002 Earth Retaining Structures, AS 1726-2017 Geotechnical Site Investigations, AS/NZS 1170.2:2011 Structural design actions – Wind actions
Frequently asked questions
What is the typical depth for sheet pile walls in Bendigo?
Depths range from 6 to 15 meters depending on the retained height and soil conditions. In areas with shallow bedrock, the wall may be designed as a gravity or anchored system to limit embedment.
Do I need a geotechnical investigation before designing a sheet pile wall?
Absolutely. AS 4678 requires a site investigation to determine soil stratigraphy, groundwater levels, and the presence of any obstructions or voids. Without it, the wall design is incomplete and potentially unsafe.
How much does a sheet pile wall design cost in Bendigo?
The cost for a complete design package including site investigation, analysis, and documentation ranges from AU$2.240 to AU$9.020. The final price depends on wall height, site complexity, and the number of investigation points needed.
Can sheet piles be installed near old mine workings?
Yes, but it requires careful planning. We use pre-augering or jetting to avoid damaging the piles, and we may recommend grouting of voids before driving. A detailed void assessment is essential.
What is the difference between cantilever and anchored sheet pile walls?
Cantilever walls rely on embedment depth for stability and are suitable for heights up to about 4 meters. Anchored walls use tiebacks or ground anchors to resist lateral loads, allowing greater heights and reduced embedment in stiff soils.
