A residential development on a 14-degree slope near the Bendigo Creek corridor required a detailed stability assessment before excavation could begin. The soil profile consisted of colluvium overlying weathered sandstone, with groundwater seepage observed at 3 metres depth. Our team deployed inclinometers and standpipe piezometers to monitor movement and pore pressure over two monitoring cycles. This data fed into limit equilibrium models using the Morgenstern-Price method. For this project we combined the slope stability analysis with a georradar survey to map subsurface anomalies and a resistivity tomography to confirm bedrock geometry. The final design recommended a 0.5 metre surcharge removal and a subsurface drainage blanket to achieve a factor of safety above 1.5 under static conditions.
Non-circular failure surfaces through weathered rock-soil interfaces are the dominant failure mode in Bendigo. Circular analysis alone underestimates risk by up to 40 percent.
Methodology and scope
A common oversight in Bendigo is assuming that weathered rock slopes behave like soil slopes. The transition zone between colluvium and bedrock often creates a weak shear plane that standard circular failure analyses miss. Our methodology addresses this directly. We model both circular and non-circular failure surfaces using Spencer's method and the Sarma approach for wedge failures. The key parameters we evaluate include effective cohesion, friction angle from direct shear tests on undisturbed samples, and groundwater regime from long-term piezometer records. We also assess tension crack development and seismic coefficients per AS/NZS 1170.0. For steep cut slopes in the Bendigo goldfields region, we routinely apply anclajes to reinforce the active wedge and muros de contención at the toe to control lateral displacement. Every analysis is calibrated against at least two boreholes with SPT N-values and undisturbed sampling.

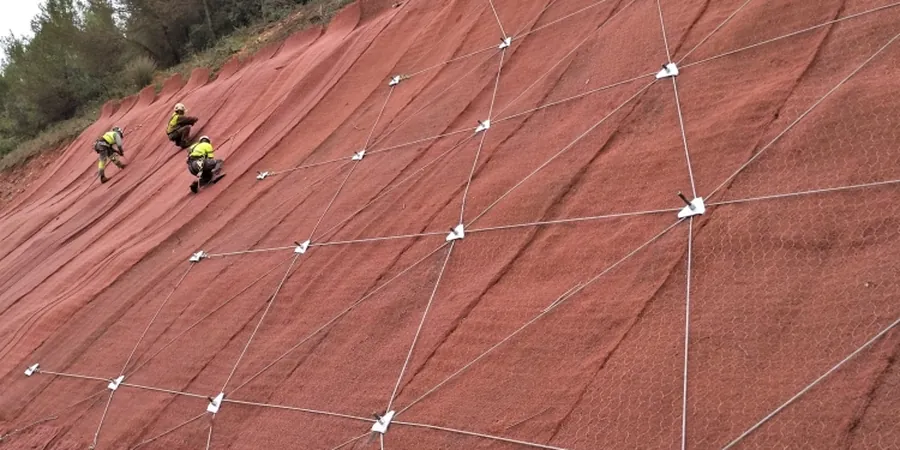

Technical reference image — Bendigo
Local considerations
In Bendigo, many engineers overlook the role of old mining shafts and adits in slope instability. The historical gold mining network extends under several modern residential areas. A slope that appears stable on the surface may have a void 8 metres below that reduces the effective shear resistance along the failure plane. We have documented cases where a 2 metre diameter stope collapsed under a 4 metre fill embankment, triggering a retrogressive failure. Our slope stability analysis protocol includes a historical mine void search through the Geological Survey of Victoria database and a geophysical survey (MASW or GPR) to detect shallow underground workings before any analysis is finalised. Skipping this step can lead to factors of safety that are falsely high by 0.3 or more.
Weekly during excavation, monthly post-construction
Associated technical services
01
Limit Equilibrium Analysis
Bishop Simplified, Morgenstern-Price, Spencer, and Sarma methods for circular and non-circular failure surfaces. Includes sensitivity analysis on cohesion and friction angle.
02
Finite Element Modelling
2D and 3D Plaxis models for complex geometry, staged excavation, and soil-structure interaction. Deformation contours and factor of safety reduction plots.
03
Remedial Design
Design of soil nails, anchored walls, drainage blankets, and buttress fills. Drawings and specifications compliant with AS 4678 and local council requirements.
04
Monitoring & Instrumentation
Inclinometer installation and reading, standpipe piezometers, surface survey targets, and crack gauges. Monthly reports with movement trends and warning thresholds.
Applicable standards
AS 4678-2002 Earth-retaining structures, AS 1726-2017 Geotechnical site investigations, AS/NZS 1170.0:2002 Structural design actions - general principles
Frequently asked questions
What is the difference between a circular and non-circular failure analysis?
Circular analysis assumes the failure surface is a perfect arc, which works for homogeneous soil slopes. Non-circular analysis allows the surface to follow weak layers, joints, or rock-soil interfaces. In Bendigo, where weathered rock overlays colluvium, non-circular surfaces are the norm. The Sarma method handles these irregular geometries most accurately.
How long does a typical slope stability assessment take in Bendigo?
A standard residential slope assessment with two boreholes, laboratory testing, and limit equilibrium modelling takes 4 to 6 weeks. If historical mine voids need investigation or if finite element modelling is required, expect 8 to 10 weeks. We always coordinate with the City of Greater Bendigo planning timelines.
What is the cost range for a slope stability analysis in Bendigo?
The cost for a complete slope stability analysis including site investigation, laboratory testing, modelling, and a certified report ranges from AU$1.660 to AU$5.900. The variation depends on slope height, number of failure surfaces analysed, and whether remedial design is included. A basic residential assessment with one borehole starts around the lower end.
Do I need a slope stability analysis for a retaining wall under 1.5 metres?
AS 4678 exempts walls under 1.5 metres from a full stability analysis in most cases, provided the wall is designed for standard surcharge loads. However, if the wall is on a slope steeper than 10 degrees or near a known mine void, we recommend at least a simplified stability check. The Bendigo planning scheme may also require geotechnical certification for any wall over 1 metre on a slope.
