Bendigo sits on a mix of Quaternary alluvium and weathered bedrock, with expansive clay profiles reaching up to 8 meters in depth in the northern suburbs. The region's gold mining legacy left shallow stopes and shafts that can trigger unexpected ground movement. A reliable differential settlement analysis in Bendigo must account for these legacy voids alongside the natural shrink-swell behavior of the clays. We combine borehole logging with laboratory consolidation testing to quantify settlement magnitude and rate. This data feeds directly into foundation design, helping engineers decide between stiffened rafts or deeper pile systems. Before finalizing the structural layout, we often recommend a plate load test to verify the assumed bearing modulus, especially on sites near old mine workings.
Expansive clay profiles reaching 8 meters deep and legacy mine voids make Bendigo one of the most challenging sites for differential settlement prediction.
Methodology and scope
A common mistake on Bendigo projects is assuming uniform soil conditions across the entire site. The underlying geology can change from firm clay to loose fill within 20 meters, producing differential movements that crack slabs and distort frames. A proper differential settlement analysis in Bendigo identifies these transitions early. We assess layer compressibility through oedometer tests on undisturbed samples, then model the expected deflection using parameters like Cc (compression index) and Cs (swelling index). The analysis follows AS 1726 for sampling protocols and AS 4678 for earth-retaining structures adjacent to the building footprint. For sites with deep fill, we integrate consolidation testing to evaluate how long the settlement will take to stabilize before construction.

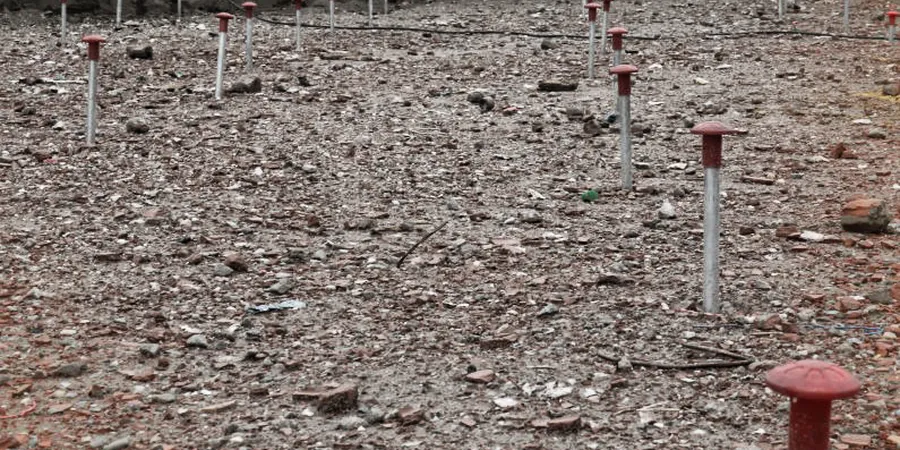

Technical reference image — Bendigo
Local considerations
In Bendigo, we frequently see cases where the builder filled a low area with imported material without compaction control, then poured a slab-on-grade. The fill settled 40 mm while the adjacent natural clay swelled 15 mm seasonally — that 55 mm differential cracked the internal walls within 12 months. A differential settlement analysis in Bendigo catches these scenarios before concrete is ordered. We also check for old mine shafts that may have collapsed decades ago, leaving a hidden void that only shows up when the structure begins to deform. Ignoring this risk leads to expensive retrofitting or even demolition.
Oedometer tests on undisturbed cores to measure Cc, Cs, and preconsolidation pressure. Includes time-rate predictions for staged construction.
02
3D Differential Movement Modeling
Finite element simulation that accounts for variable clay depth, old workings, and seasonal moisture changes. Outputs differential deflection contours for slab design.
Applicable standards
AS 1726 – Geotechnical site investigations (sampling and testing), AS 4678 – Earth-retaining structures (adjacent ground movement), AS/NZS 1170.0 – Structural design actions (serviceability limits)
Frequently asked questions
What causes differential settlement in Bendigo soils?
The main causes are reactive clay layers that swell and shrink with moisture, plus shallow voids from historical gold mining. Variations in fill thickness across a site also produce uneven movement. A differential settlement analysis in Bendigo identifies each factor separately.
How is differential settlement measured on site?
We install survey monitoring points on the slab or footings and measure elevation changes over time. In parallel, we take undisturbed samples for oedometer testing to predict future movement. The combination of field monitoring and lab data gives a complete picture.
What is the typical cost range for a differential settlement analysis in Bendigo?
For a standard residential or small commercial project, the analysis ranges between AU$1,280 and AU$2,720 depending on borehole depth, number of samples, and complexity of the modeling. Large sites with multiple soil types may cost more.
Can differential settlement be repaired after construction?
Yes, but it is expensive. Options include underpinning with piles, slab jacking, or soil grouting. A pre-construction differential settlement analysis in Bendigo costs a fraction of these repairs and avoids the structural damage altogether.
