Bendigo sits over a mix of Cambrian metasediments and Quaternary alluvial clays, often with a shallow water table near the Bendigo Creek. These clay-rich subgrades can be highly moisture-sensitive, which directly affects the CBR value used in pavement design. A proper CBR study for road design in Bendigo must account for the swelling potential of the local soils after wetting. In our experience, even a standard soaked CBR at 95% maximum dry density can drop by half compared to the unsoaked value. Before specifying pavement layers, we recommend a complementary clasificacion de suelos to identify plasticity trends, and a granulometria to detect oversize particles that could alter compaction.
A soaked CBR in Bendigo's clay subgrades can drop by 50% from the unsoaked value, making moisture conditioning the single most critical step in pavement design.
Methodology and scope
The Australian Standard AS 1726 sets the framework for site investigation, while AS 4678 provides guidance on earth-retaining structures where cuts expose the subgrade. For a CBR study in Bendigo, the key is to simulate the worst-case moisture condition. That means performing the four-day soak test on samples compacted at OMC per AS 1289.6.1.1. We also run a ensayo proctor on the same material to define the density-moisture relationship. The local alluvial clays often classify as CH under the Unified System, so we cross-check with limites atterberg to predict shrink-swell behaviour that could crack a pavement shoulder.

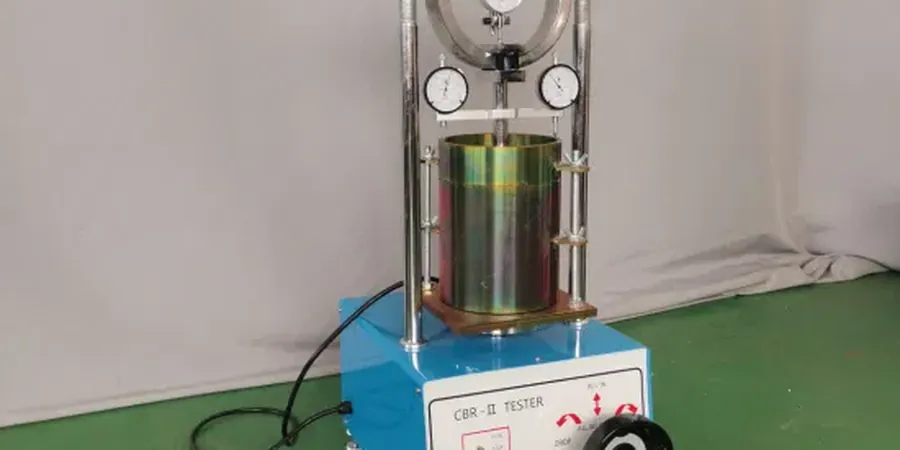

Technical reference image — Bendigo
Local considerations
A common mistake we see on Bendigo road projects is skipping the soaked CBR test and relying only on the unsoaked value. The local clays, when saturated after a wet winter, can lose more than half their bearing capacity. That leads to premature pavement failure, rutting, or alligator cracking within the first two years. Another error is testing only the subgrade at natural moisture content without considering the compaction moisture range specified in the design. Without a proper CBR study for road design in Bendigo that includes soaked conditions, the pavement thickness design becomes guesswork, and the council or road authority may reject the submission for non-compliance with AS 3727.
Standard (AS 1289.5.1.1) or Modified (AS 1289.5.2.1)
Mould size
152 mm diameter, 127 mm height
Surcharge load
4.5 kg (standard for road base)
Sample conditioning
Sealed curing for 4 days at 20 ± 1°C
Associated technical services
01
In-Situ CBR Testing
Field CBR tests directly on the subgrade using a calibrated loading ram and proving ring, following AS 1289.6.1.1. Ideal for verifying compaction quality on completed earthworks.
02
Laboratory Soaked CBR
Four-day soaked CBR on undisturbed or compacted samples. We measure expansion during soaking to evaluate swelling potential, critical for Bendigo's reactive clays.
03
Pavement Layer Assessment
CBR testing on base and sub-base materials, combined with sieve analysis and compaction control. We help determine the design CBR for each pavement layer.
04
Moisture Conditioning Study
Evaluation of subgrade moisture variation across the site using OMC correlation and Atterberg limits. Essential for predicting post-construction CBR changes.
Applicable standards
AS 1726 – Geotechnical site investigations, AS 1289.6.1.1 – CBR test method, AS 4678 – Earth-retaining structures
Frequently asked questions
What is a CBR study used for in road design?
A CBR study measures the bearing capacity of the subgrade, sub-base, and base materials. The CBR value directly determines the required pavement thickness to prevent rutting and cracking under traffic loads.
How much does a CBR study for road design in Bendigo cost?
For a typical residential street or minor road project, the cost ranges between AU$280 and AU$530 per test point, depending on whether it is in-situ or laboratory soaked, and the number of samples required.
Why is the soaked CBR test important for Bendigo soils?
Bendigo's clay subgrades can swell and lose strength when wet. The soaked CBR simulates worst-case moisture conditions after heavy rain, giving a realistic value for pavement design that prevents premature failure.
What standards govern CBR testing in Australia?
The primary standard is AS 1289.6.1.1, which specifies the test method, sample preparation, and reporting. For site investigation, AS 1726 also applies to the overall geotechnical assessment.
Can I use the unsoaked CBR value for pavement design?
Only if the subgrade is guaranteed to remain dry throughout the pavement's life. In Bendigo's climate, with seasonal rainfall, the soaked CBR is strongly recommended to avoid under-design and early pavement distress.
