Bendigo grew fast during the gold rush, and those alluvial terraces and buried channels still shape foundation design today. When we assess deep foundations here, the core question is how much load the shaft carries through skin friction versus how much the tip transfers to competent strata. That balance shifts with depth, groundwater, and the stiff clays overlying the sandstone bedrock. A proper pile skin friction vs. end bearing analysis isolates those components using field data from SPT and CPT logs, then feeds them into bearing capacity equations per AS 1726 and ACI 543R. We have done this for dozens of sites across Bendigo, from residential piles on View Street to industrial foundations near the railway.
Separating skin friction from end bearing is not just academic—it decides pile length, cost, and safety in Bendigo's variable ground.
Methodology and scope
The climate in Bendigo is semi-arid, with seasonal drying and wetting cycles that alter soil suction and effective stress in the first 5 meters. That directly affects shaft adhesion calculations for piles in the upper clays. We handle this by incorporating unsaturated soil mechanics into the side resistance estimates, using triaxial and direct shear data from undisturbed samples. In parallel, we run instrumentation for load testing on trial piles to validate the predicted friction angles and adhesion factors. The analysis also accounts for the high variability of Bendigo's colluvium—some zones have cemented gravels that boost end bearing, while others require deeper embedment into the underlying sandstone to reach acceptable toe resistance.

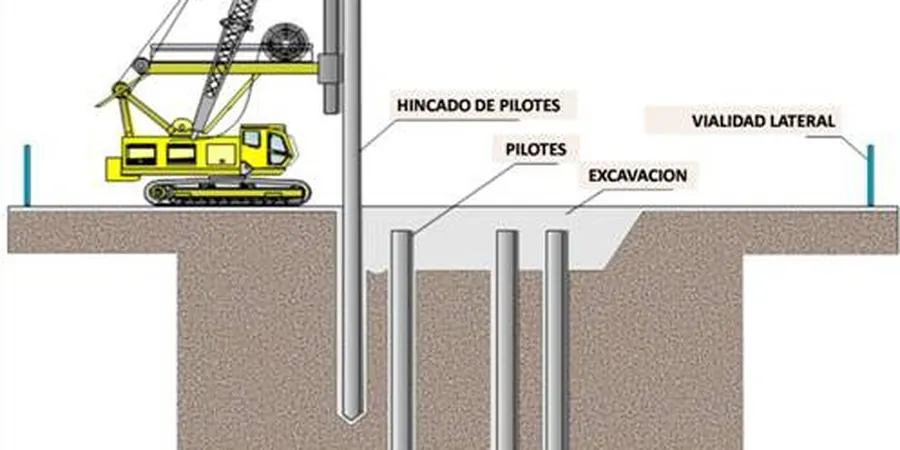

Technical reference image — Bendigo
Local considerations
The alluvial soils under central Bendigo often contain old mining voids and loose fills from the 19th century. A pile driven through these zones may lose side friction abruptly, shifting load to the tip. If the tip rests on a thin weathered layer rather than competent sandstone, the end bearing capacity can be less than half the calculated value. We have seen projects where ignoring this risk led to differential settlements exceeding 25 mm. That is why we insist on combining the pile skin friction vs. end bearing analysis with a detailed soil profile from SPT borings and, where voids are suspected, with georadar surveys.
Instrumented static load tests on trial piles to separate shaft and toe resistance. We use strain gauges and tell-tales at multiple depths, then back-calculate unit skin friction and end bearing per AS 2159. Results are reported with measured versus predicted values for your specific Bendigo site conditions.
02
Numerical Modeling of Axial Pile Capacity
Finite-element and boundary-element models (e.g., PLAXIS 2D/3D, RSPile) that simulate the load-transfer mechanism in layered soils. We calibrate the model with SPT N-values, CPT cone resistance, and lab strength data. Output includes load-settlement curves and the mobilized friction and end-bearing components at working load.
Applicable standards
AS 1726:2017 – Geotechnical site investigations, AS 2159:2009 – Piling – Design and installation, ACI 543R-12 – Guide to design, manufacture, and installation of concrete piles
Frequently asked questions
How does the analysis differ for driven piles versus bored piles in Bendigo?
Driven piles in Bendigo's stiff clays displace and densify the soil, increasing skin friction immediately but also generating pore pressure that must dissipate before testing. Bored piles experience some stress relief during excavation, which can reduce shaft adhesion unless the sidewall is properly roughened or grouted. Our analysis accounts for these installation effects using alpha and beta methods tailored to each pile type, referencing AS 2159 and local calibration from past projects in the region.
What is the typical cost range for a pile skin friction vs. end bearing analysis in Bendigo?
For a standard residential or light commercial project in Bendigo, the analysis typically ranges from AU$1,630 to AU$4,440. This includes field testing (SPT or CPT), laboratory strength tests, and the bearing capacity report. Larger or more complex sites with multiple pile types or deep voids may fall above that range. Contact us for a quote tailored to your specific project scope.
How do you handle old mining voids when calculating end bearing?
Mining voids are common under Bendigo's historic center. We first identify them using historical records and georadar or microtremor surveys. In the analysis, we then treat any pile tip within 3 meters of a void as having zero end bearing—the entire load must be carried by skin friction in the intact soil below the void. We also increase the factor of safety to 3.0 for the remaining shaft capacity, as per AS 2159 clause 5.4.3.
Can the analysis predict long-term settlement from skin friction creep?
Yes, we include creep settlement in the load-settlement curve using the rate of secondary compression from consolidation tests. For Bendigo's stiff clays, creep contributes 10–20% of total settlement over 50 years, especially if the pile is loaded near 70% of ultimate skin friction. We model this with the time-dependent skin friction degradation model from ACI 543R, and we recommend load testing to 1.5 times working load to verify the creep response.
