Bendigo sits on the deep alluvial sediments of the Loddon River valley, with stiff clays and sandy gravels extending up to 40 metres in places. Groundwater levels fluctuate seasonally, often within 5–8 metres of the surface. In such conditions, the triaxial test is the standard method for determining the shear strength parameters (c’, φ’) and undrained strength (Su) needed for foundation design, slope stability, and retaining wall analysis. The test follows AS 1289.6.4.2 for consolidated undrained (CU) and AS 1289.6.4.1 for unconsolidated undrained (UU) loading. For projects requiring high-quality undisturbed samples, the triaxial test is paired with careful sampling of undisturbed specimens. This ensures the laboratory results reflect the true in-situ behaviour of Bendigo’s variable subsoils.
In Bendigo, the triaxial test is the essential tool for quantifying shear strength in variable alluvial soils and engineered fill.
Methodology and scope
Bendigo’s gold-rush history left a legacy of shallow mine workings and variable backfill. Urban infill now demands reliable ground data. The triaxial test provides three critical outputs: peak and residual friction angles, cohesion intercept, and stress-strain response under controlled drainage. Our NATA-accredited laboratory uses automated triaxial systems that apply confining pressures up to 1,200 kPa and axial loads to 50 kN. Tests are run under CD, CU, or UU conditions depending on the project stage. For deep excavations or slope stability analysis, CU with pore pressure measurement is the preferred protocol. The team processes results with Bishop’s effective stress approach when evaluating long-term stability of embankments or cut slopes in Bendigo’s weathered sedimentary sequences.

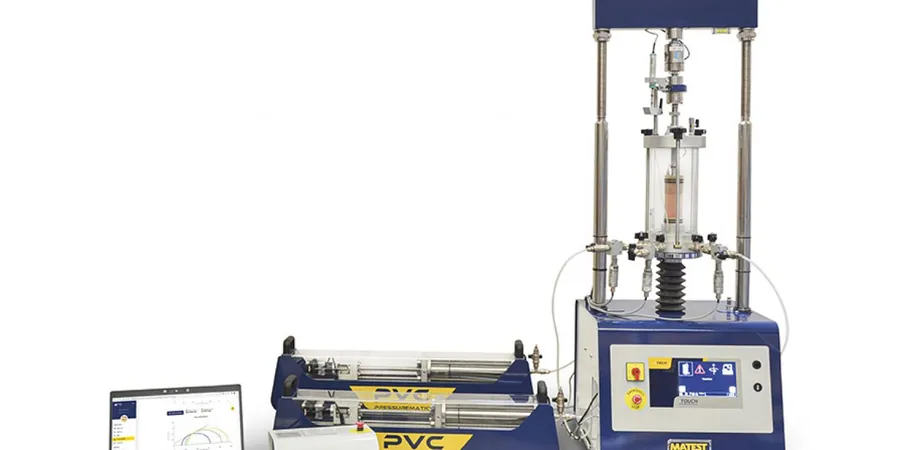

Technical reference image — Bendigo
Local considerations
A common mistake among Bendigo contractors is assuming that SPT N-values alone can predict foundation bearing capacity. That approach fails when the soil exhibits high plasticity or when loading is cyclic. Without triaxial test data, the design may underestimate settlement in the clay layers or overestimate the shear strength of loose sands. In one local subdivision, foundation slabs cracked within two years because the undrained shear strength was taken from empirical correlations rather than measured CU triaxial tests. The extra cost of a single test is negligible compared to litigation and rework. Always confirm the design parameters with actual triaxial results.
Pore pressure measured throughout shearing. Provides effective stress parameters c’ and φ’. Ideal for slope stability and retaining wall design in Bendigo’s stiff clays.
02
Unconsolidated Undrained (UU) Triaxial Test
Quick test for undrained shear strength (Su). Used for immediate bearing capacity checks and construction-stage stability in saturated fills.
03
Consolidated Drained (CD) Triaxial Test
Slow drained shearing for long-term strength parameters. Applied to embankment design, tailings dams, and slow-moving landslides where full drainage is expected.
Applicable standards
AS 1726 – Geotechnical site investigations, AS 1289.6.4.2 – Consolidated undrained triaxial test for cohesive soils, AS 1289.6.4.1 – Unconsolidated undrained triaxial test for cohesive soils, AS 1289 – Consolidated drained triaxial test for soils
Frequently asked questions
What is the difference between CU and UU triaxial tests?
In a CU test, the specimen is consolidated under confining pressure before shearing, and pore pressure is measured during shearing. This gives effective stress parameters (c’, φ’). In a UU test, no drainage is allowed at any stage, and the result is the undrained shear strength (Su). CU is used for long-term stability; UU for short-term or immediate loading conditions.
How much does a triaxial test cost in Bendigo?
A standard CU triaxial test on a 50 mm specimen costs between AU$3,160 and AU$4,240, depending on the number of confining stages and whether pore pressure measurements are included. Volume discounts apply for multiple specimens from the same project.
Do you accept samples from Bendigo’s mine backfill areas?
Yes, we test samples from reclaimed mining zones, where variable backfill requires careful characterisation. The triaxial test helps quantify the strength of heterogeneous fill, especially when combined with particle size distribution and compaction control. We recommend CU testing with pore pressure monitoring for these materials.
