When we mobilise our vibrating roller and dynamic cone penetrometer to a site in Bendigo, the first thing we check is the moisture content of the local clayey sands and colluvium. These soils, common across the Bendigo region due to its gold-mining legacy and undulating topography, require careful handling. Our road embankment design begins with a full geotechnical investigation using test pits and undisturbed sampling, ensuring we understand the bearing capacity and compaction characteristics before any fill is placed. We also integrate ensayo proctor data to optimise moisture-density relationships, which is essential for achieving long-term stability in embankments subject to seasonal wet-dry cycles. This upfront work saves costly rework later.
Without layer-by-layer compaction control and slope stability analysis, embankments in Bendigo's heterogeneous subgrade can crack pavements within months.
Methodology and scope
A frequent mistake builders make in Bendigo is assuming that all fill material behaves uniformly. In reality, the region's heterogeneous subgrade—mixing weathered schist, quartz gravels, and reactive clays—demands a site-specific approach. Our road embankment design addresses this by performing layer-by-layer compaction tests using sand cone and nuclear density gauge methods, cross-referenced with granulometria to confirm aggregate gradation meets AS 2758.1. Without this, differential settlement can crack pavements within months. We also evaluate slope stability through limit equilibrium analysis, factoring in the local rainfall intensity (over 600 mm annually) and the potential for seepage through old mine workings, which can soften the embankment core.

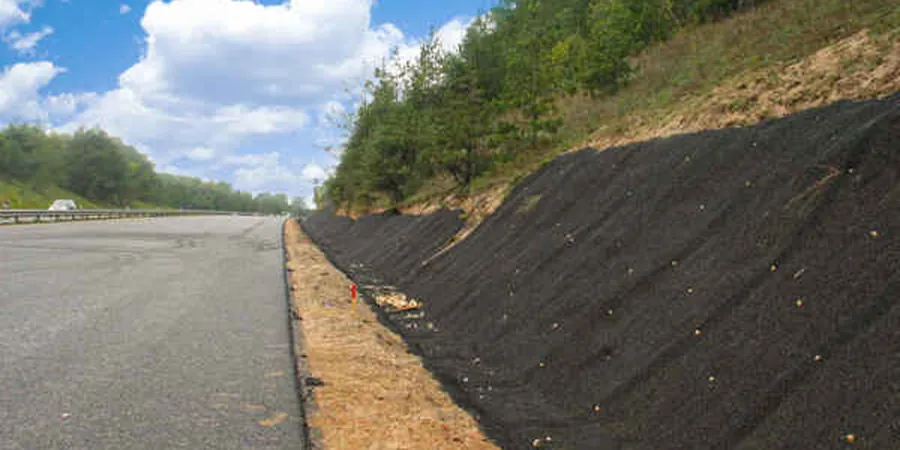

Technical reference image — Bendigo
Local considerations
Bendigo sits approximately 220 metres above sea level in a region with a long history of gold mining, which means abandoned shafts and adits can still be present beneath proposed alignments. If a road embankment is designed without locating these voids, the risk of sudden collapse under traffic loading is real. A study by the Geological Survey of Victoria documented over 5,000 historical mine entries in the Bendigo goldfield. Our service includes a thorough desktop review and geophysical survey (such as georradar-gpr or resistivity imaging) to identify any hidden cavities before design proceeds. Ignoring this step can lead to catastrophic failure and liability claims.
We classify borrow materials and on-site soils using Atterberg limits, particle size distribution, and Standard Proctor compaction tests. This determines the optimum moisture content and maximum dry density required for each lift, reducing the risk of post-construction settlement.
02
Slope Stability & Seepage Analysis
Using limit equilibrium software (Bishop simplified and Morgenstern-Price methods), we evaluate factors of safety for both static and pseudo-static conditions. We also model groundwater flow through the embankment to design drainage layers that prevent piping and erosion.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth retaining structures, AS 1289 Methods of testing soils for engineering purposes, Austroads Guide to Pavement Technology (Part 2: Pavement Structural Design)
Frequently asked questions
What is the typical cost for a road embankment design study in Bendigo?
For a standard road embankment design investigation in the Bendigo area, you can expect a cost range between AU$1.910 and AU$5.560, depending on site complexity, number of boreholes or test pits, laboratory testing requirements, and the extent of slope stability analysis. Contact us for a detailed quote tailored to your project.
How does the presence of old mine workings affect embankment design in Bendigo?
Historical gold mines beneath proposed alignments create a risk of void collapse under traffic loads. We conduct a desktop review of mine records, then use geophysical methods like ground-penetrating radar or electrical resistivity to locate shafts and adits. If voids are found, we design appropriate bridging or grouting solutions before embankment construction.
What compaction standard is used for road embankments in Bendigo?
We follow AS 1289.5.1.1 for Standard Proctor compaction testing, achieving a minimum 95% of maximum dry density for structural fill layers. For high-traffic routes or deeper fills, we may specify Modified Proctor (AS 1289.5.2.1) to achieve higher density and reduce long-term settlement.
How long does a typical road embankment design investigation take?
A standard investigation, including field testing, laboratory analysis, and reporting, usually takes 4 to 6 weeks. If the site has complex geology, such as multiple fill sources or suspected mine voids, the timeline may extend to 8 weeks. We coordinate closely with project schedules to minimise delays.
