In Bendigo, many cut slopes along the Calder Highway and the old gold mining gullies show slow but measurable creep, especially after wet winters. The local geology — deeply weathered Ordovician turbidites with clay-rich saprolite zones — means that a slope can appear stable for months then shift a few millimetres during a heavy storm. That is why monthly geotechnical slope monitoring makes sense here: it catches the early movement before it turns into a costly failure. Before setting up the monitoring network, we usually run a calicatas exploratorias to map the soil-rock contact and identify any hidden shear zones. The data from those pits feeds directly into the monitoring plan.
Monthly readings catch early movement in Bendigo's saprolite slopes before surface cracks appear, reducing repair costs significantly.
Methodology and scope
A common mistake contractors make in Bendigo is relying solely on visual inspections after rain. By the time cracks appear on the surface, the slope has already moved several centimetres. Monthly geotechnical slope monitoring fills that gap with quantitative data: inclinometer casings grouted into the slope give depth-of-movement profiles, while standpipe piezometers track pore pressure buildup in the colluvium. The monitoring frequency of 30 days is well suited to the region's seasonal climate — it captures the wetting front advance from autumn rains without drowning the project in weekly readings. We also install surface survey targets on the slope face and read them with a total station to cross-check subsurface data.

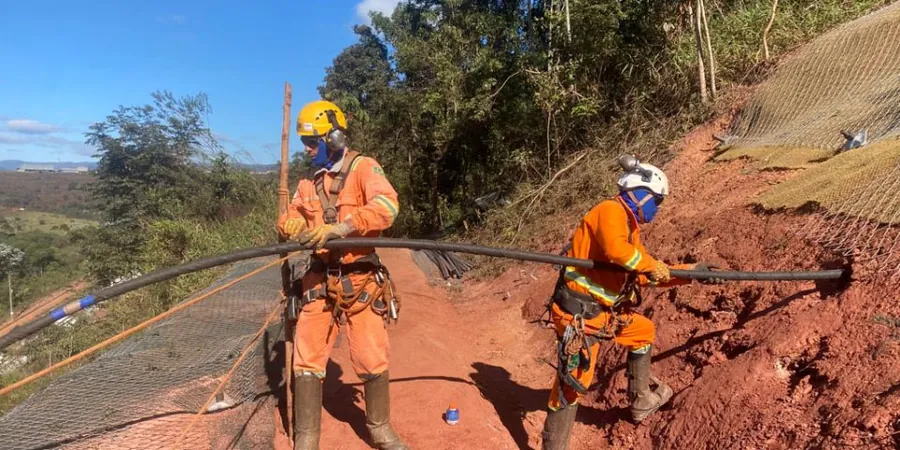

Technical reference image — Bendigo
Local considerations
AS 4678-2002 (Earth-retaining structures) and AS 1726-2017 (Geotechnical site investigations) both require monitoring plans where slope movement could affect adjacent property or public roads. In Bendigo, where many residential subdivisions sit at the toe of old mine dumps and natural escarpments, the risk is real: a slow-moving failure in the saprolite layer can gradually push against a retaining wall or crack a driveway. Monthly monitoring provides the warning time needed to implement drainage improvements or install ground anchors before the movement accelerates. Without it, the cost of emergency slope repairs often exceeds the monitoring budget by a factor of ten.
Inclinometer readings, standpipe piezometer measurements, and surface survey of up to 10 targets per slope. Data presented as cumulative displacement graphs with trigger alerts. Suitable for cut slopes and road embankments.
02
Enhanced monitoring with piezometric analysis
Adds vibrating wire piezometers with dataloggers, pore pressure trend analysis, and correlation with rainfall data. Includes a monthly report with movement-pore pressure plots. Designed for high-risk slopes near infrastructure.
Applicable standards
AS 4678-2002 Earth-retaining structures, AS 1726-2017 Geotechnical site investigations, FHWA-NHI-05-123 (slope monitoring guidelines)
Frequently asked questions
How long should monthly slope monitoring continue in Bendigo?
Typically 12 to 24 months. The first year captures the full seasonal cycle; the second year confirms the slope has stabilised. If the movement rate stays below 5 mm/month for two consecutive wet seasons, the monitoring frequency can be reduced to quarterly.
What triggers a warning alarm in the monthly monitoring data?
We use a simple threshold: if any inclinometer zone shows more than 5 mm of cumulative movement in a single month, or if pore pressure rises above 80% of the overburden stress, the system triggers a written alert. The engineer then decides whether to increase reading frequency or recommend temporary drainage works.
Can monthly monitoring detect deep-seated failure in old mine slopes?
Yes, but only if the inclinometer casing extends below the potential slip surface. In Bendigo's historic mine dumps, the slip plane often sits at 8–12 m depth, within the saprolite layer. We design the casing depth based on the initial site investigation so the monitoring covers the full failure zone.
