Bendigo's semi-arid climate, with long, hot summers and concentrated winter rainfall, creates dramatic moisture cycles that directly challenge any retaining wall design. The region's dominant clay soils, derived from the ancient Box Creek and Big Hill formations, swell when wet and shrink during drought, exerting variable lateral pressures that a standard generic design simply cannot handle. In our experience, a successful retaining wall in Bendigo must account for these seasonal volume changes from the very first site assessment. That is why we always begin with a thorough subsurface investigation, often combining a test pit excavation to visually log the soil profile with a plate load test to measure in-situ stiffness, before moving to the analytical phase of the retaining wall design.
In Bendigo's reactive clays, a retaining wall designed without moisture-cycle data risks catastrophic tilting within two wet seasons.
Methodology and scope
When tackling a retaining wall design in Bendigo, our team follows a methodical workflow that integrates field data with Australian Standards. The process typically involves:
Detailed site survey and classification of soil types per AS 1726, focusing on plasticity and reactiveness.
In-situ testing with a field vane shear to assess undrained shear strength in cohesive layers, and a CPT sounding for continuous stratigraphic profiling.
Laboratory index testing — Atterberg limits and linear shrinkage — to quantify the soil's shrink-swell potential.
Limit equilibrium analysis using software that applies AS 4678 load combinations, including surcharge and seismic acceleration for Bendigo's moderate seismic zone.
This layered approach ensures the final retaining wall design is neither over-conservative nor under-designed for the specific ground conditions encountered.

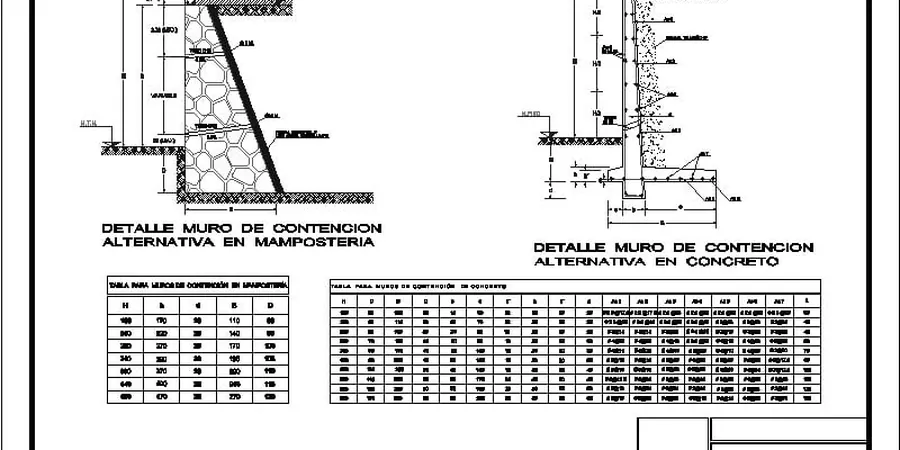

Technical reference image — Bendigo
Local considerations
A few years ago we reviewed a retaining wall failure on a residential development near the Bendigo Racecourse. The wall, a 2.4-meter concrete block structure, had been designed using textbook active-pressure coefficients for a compacted granular backfill. What the design missed was the native clay beneath the footing: it swelled 8% after two La Niña winters. The lateral pressure from the swelling clay exceeded the wall's capacity, causing a 150-mm tilt at the top and cracking the block units. For any retaining wall design in Bendigo, the risk of ignoring clay reactiveness is not theoretical — it is a recurring problem we see in the older suburbs around Eaglehawk and Strathdale.
Silty clay to clay (CH/CI), reactive to highly reactive
Linear Shrinkage (LS)
12% - 20% (AS 1289.3.4.1)
Undrained Shear Strength (Su)
50-120 kPa (field vane)
Friction Angle (phi)
20-26 degrees (consolidated drained triaxial)
Design Life
50 years per AS 4678-2002
Seismic Acceleration (a_g)
0.08g (AS 1170.4, Bendigo Zone B1)
Associated technical services
01
Expansive Soil Assessment for Retaining Walls
Focused on measuring shrink-swell potential through Atterberg limits, linear shrinkage, and free-swell tests. We provide site-specific reactivity classifications (Class M, H1, H2 per AS 2870) that directly inform the wall's footing depth and drainage design.
02
Slope Stability Analysis for Retaining Walls
For walls built on Bendigo's steeper terrain — around the Whipstick or the Bendigo Creek corridor — we run limit-equilibrium models (Bishop, Spencer) to check global and local stability. This service includes recommendations for drainage blankets, geotextile separation, and cut-face reinforcement.
Applicable standards
AS 4678-2002: Earth-Retaining Structures, AS 1726-2017: Geotechnical Site Investigations, AS/NZS 1170.0: Structural Design Actions – General Principles, AS/NZS 1170.4: Structural Design Actions – Earthquake Actions, AS 2870-2011: Residential Slabs and Footings (clay reactivity classification)
Frequently asked questions
What is the typical cost range for a retaining wall design in Bendigo?
For a standard residential retaining wall design (up to 3 meters height) on a single lot, costs typically range between AU$1,620 and AU$6,930. This includes the site investigation, laboratory testing, and a detailed design report with construction drawings. Larger commercial walls or those on reactive sites will be at the higher end of this range.
Which Australian Standards apply to retaining wall design in Bendigo?
The primary standard is AS 4678-2002, Earth-Retaining Structures. It works together with AS 1726 for the geotechnical investigation, and AS/NZS 1170 for structural load actions, including seismic loads for Bendigo's Zone B1. For clay reactivity, AS 2870 is referenced to classify the site.
What drainage requirements are critical for a retaining wall in Bendigo's clay soils?
Because Bendigo's clays are reactive, drainage is critical to prevent water buildup behind the wall, which can increase lateral pressure and trigger swelling. We typically specify a 300-400 mm granular drainage layer with a perforated pipe at the base, wrapped in a geotextile filter fabric. A surface swale at the top of the wall also helps divert runoff away from the backfill zone.
