A common mistake we see on Bendigo projects is specifying a geotextile solely by weight or cost, ignoring the critical separation, filtration, and tensile requirements that the local ground conditions demand. The goldfields region around Bendigo features variable clayey sands, colluvial soils, and occasional rock fill, so a generic fabric from a national supplier often fails within two to three years. We have seen contractors order a woven geotextile with a grab tensile strength below 700 N when the design required at least 1100 N for subgrade restraint, leading to early rutting and full replacement costs. A proper geotextile specification should reference AS 4678:2002 for earth-retaining structures and AS 3706 for test methods, ensuring that the selected fabric matches the local soil's particle size distribution and the hydraulic gradient of the drainage layer. Before finalising the specification, a subgrade CBR assessment and a permeability test on site provide the baseline data needed to choose the right geotextile class.
A geotextile chosen solely by weight or cost will fail within two years in Bendigo’s clayey sands and colluvial fills.
Methodology and scope
Bendigo’s typical soil profile consists of a silty clay crust over weathered bedrock of the Ordovician turbidite sequence, with groundwater often encountered at 3 to 5 metres depth in the lower-lying areas. These conditions demand a geotextile specification that accounts for both mechanical and hydraulic performance. The key parameters we define for each project include: grab tensile strength (AS 3706.2), CBR puncture resistance (AS 3706.4), apparent opening size (AS 3706.7), and permittivity. For a road subgrade with a CBR of 3 to 5 percent, we typically specify a Class B geotextile with a grab strength of 1100 N and an AOS between 150 and 300 microns. For drainage geocomposites behind retaining walls, a nonwoven needle-punched fabric with a permittivity above 0.5 s⁻¹ is standard. We also factor in the installation damage potential: on sharp quartzite fill common in Bendigo quarries, we may increase the specification by one class to account for abrasion during placement. A full clasificación de suelos helps confirm the fines content and plasticity index that influence clogging risk.

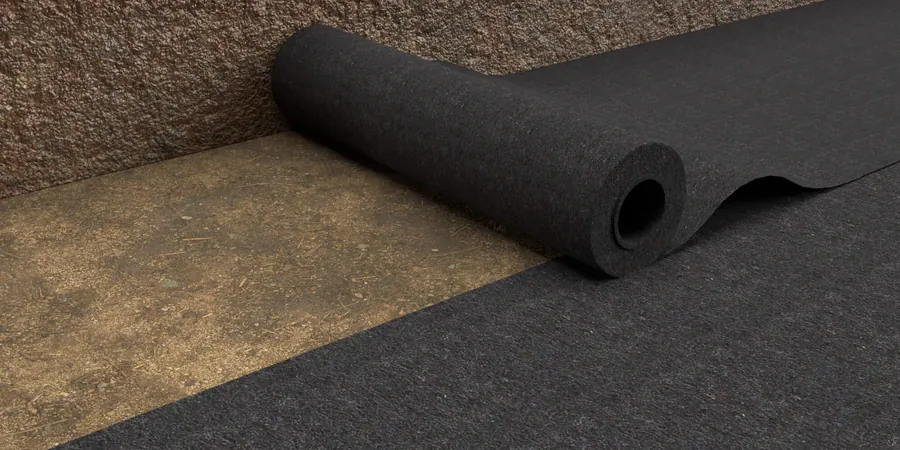

Technical reference image — Bendigo
Local considerations
A recent road upgrade on Midland Highway near Bendigo used a nonwoven geotextile with an AOS of 90 microns over a silty clay subgrade. Within 18 months, fines had clogged the fabric, turning the drainage layer into a perched water table that softened the subgrade and caused longitudinal cracking. The contractor had not verified the geotextile's permittivity against the site's particle size distribution curve. We see this pattern repeatedly: a specification copied from a previous job without adjusting for local soil gradation or groundwater fluctuations. In Bendigo, where winter rainfall saturates the shallow clay profiles, a clogged geotextile effectively becomes an impermeable barrier, leading to pavement failure and expensive remediation. A site-specific specification backed by on-site testing avoids these failures.
Based on site investigation data including soil classification, CBR, and permeability results, we select the appropriate geotextile class (A, B, or C per AS 4678) and define all critical parameters: grab strength, puncture resistance, AOS, permittivity, and UV resistance. We provide a written specification table that contractors can use for procurement and quality assurance testing.
02
Installation Damage Assessment & QA Review
We evaluate the risk of mechanical damage during installation by considering fill angularity, placement method, and compaction equipment. For Bendigo projects with quartzite or basalt fill, we recommend a one-class increase and specify a minimum mass per unit area. We also review manufacturer test certificates against the specification and advise on on-site conformance testing frequency.
Applicable standards
AS 4678:2002 Earth-retaining structures, AS 3706.2:2012 Geotextiles – Grab tensile strength, AS 3706.4:2012 Geotextiles – CBR puncture resistance, AS 3706.7:2012 Geotextiles – Determination of apparent opening size
Frequently asked questions
What is the typical cost range for a geotextile specification service in Bendigo?
For a standard road or drainage project in Bendigo, the geotextile specification service including site review, parameter definition, and a written specification document typically ranges between AU$570 and AU$1,830, depending on the project complexity and the number of geotextile types required. Additional on-site conformance testing is quoted separately.
Which Australian standard governs geotextile specification for earth-retaining structures?
AS 4678:2002 Earth-retaining structures is the primary standard. It references AS 3706 series for test methods and provides a classification system for geotextiles based on grab tensile strength, puncture resistance, and AOS. For drainage applications, you should also refer to AS 3706.9 for permittivity testing.
How do I know if a geotextile is suitable for Bendigo's clayey subgrade?
You need to compare the geotextile's apparent opening size (AOS) and permittivity with the soil's particle size distribution and plasticity index. For Bendigo's silty clays, an AOS between 150 and 300 microns with a permittivity above 0.3 s⁻¹ is typical. A soil classification test is essential before finalising the specification.
Can I use the same geotextile specification for all Bendigo projects?
No. Ground conditions vary across Bendigo — from the shallow clay profiles near the Bendigo Creek to the colluvial slopes on the outskirts. Each project requires a site-specific specification that accounts for local soil gradation, groundwater depth, and the angularity of the fill material. A generic specification is a common cause of early pavement failure.
