Our rig crew sets up the PVD installation mast on site, feeding the prefabricated vertical drain through a steel mandrel that pushes it down to the target depth. In Bendigo, we work with drains that have a typical cross-section of 100 mm by 4 mm, using a filter jacket to prevent clogging in the fine-grained soils of the Loddon Valley. The mandrel retracts while the drain stays in place, connected to a horizontal drainage blanket that collects water. We record installation depth, pull resistance, and drain continuity for every single vertical drain placed. Before mobilizing, we always review the soil profile from nearby boreholes and SPT data to confirm the design assumptions match actual ground conditions.
PVDs cut consolidation time from years to months in Bendigo's alluvial clays, reducing settlement risk for embankments and fills.
Methodology and scope
A recent project for a railway embankment upgrade near the Bendigo Creek floodplain required PVDs spaced at 1.2 meters in a triangular pattern to accelerate consolidation of the alluvial clay layer that was 8 meters thick. The design called for a 6-month surcharge period, and our team installed over 4,500 vertical drains with a cross-section of 3.5 mm by 100 mm. We coordinated the installation sequence with the earthworks contractor to avoid damaging the drainage blanket. Each drain was pre-cut to the exact length, and we used a GPS-enabled rig to verify spacing on the ground. To complement the drainage design, we ran field permeability tests at three depths to check horizontal flow capacity in the clay.

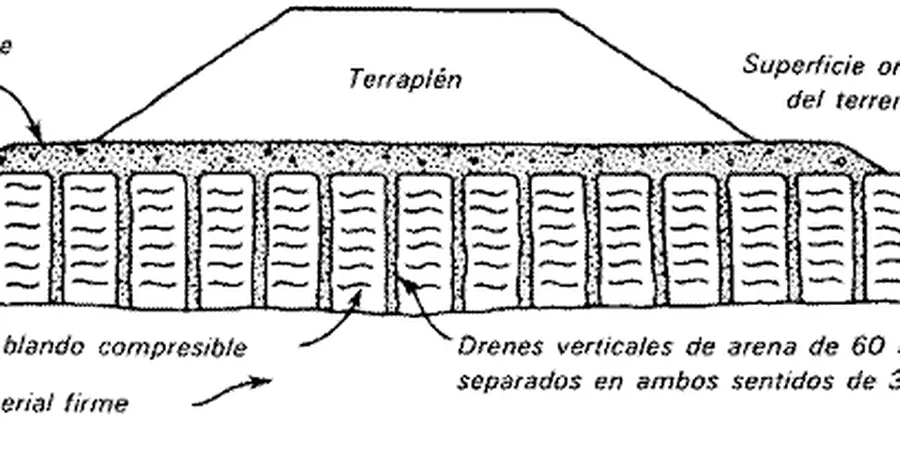

Technical reference image — Bendigo
Local considerations
In Bendigo, we often see that contractors underestimate the effect of smear zone from the mandrel insertion. The soil around each drain gets remolded, reducing horizontal permeability by up to 60%. If the design does not account for smear, the actual consolidation time can double. Another common issue is improper connection between the vertical drain and the drainage blanket, which creates a bottleneck for water flow. We always inspect the overlap and check that the blanket material has sufficient hydraulic conductivity. Ignoring these details can lead to differential settlement and structural cracks in the embankment or slab.
We calculate optimal drain spacing and depth using the Barron consolidation theory and Hansbo's smear zone corrections. Output includes settlement-time curves and required surcharge height.
02
Installation Supervision and Quality Control
Our technicians monitor mandrel penetration rate, drain tension, and continuity on each vertical drain. We document as-built layout and flag any deviations from the design.
03
Post-Installation Settlement Monitoring
After drain installation, we install settlement plates and piezometers to track consolidation progress. Monthly reports compare actual versus predicted settlement, allowing surcharge removal timing decisions.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures, AS/NZS 1170.0:2002 Structural design actions (general principles), FHWA-RD-86-168 Prefabricated vertical drains design guidelines
Frequently asked questions
How does PVD design differ in Bendigo compared to coastal areas?
Bendigo's alluvial clays have lower plasticity and higher silt content than coastal marine clays. This means smear zone effects are less severe, but the horizontal permeability is also lower. Our designs for Bendigo typically use tighter spacing — around 1.0 to 1.5 meters — to achieve the same consolidation rate as wider spacing in coastal soils. We also account for the deeper water table in the Loddon Valley.
What is the typical cost range for PVD design and installation in Bendigo?
For a standard project, expect to pay between AU$1.340 and AU$3.650 per vertical drain installed, including design, materials, and installation. The final cost depends on drain length, total quantity, site access, and whether surcharge loading is included. We provide a detailed quote after reviewing the soil investigation report.
How long does consolidation take with PVDs in Bendigo's soil conditions?
For a typical 6-meter clay layer with PVDs at 1.2-meter spacing, 90% consolidation can be achieved in 4 to 8 months with a 3-meter surcharge. Without drains, the same layer would take 3 to 5 years. The actual timeline depends on the clay's coefficient of consolidation (cv) and the horizontal permeability (kh). We run consolidation tests on undisturbed samples to refine the prediction.
Can PVDs be used for existing structures in Bendigo?
PVDs are primarily designed for new embankments and fills where access is available before construction. For existing structures showing settlement, other methods like compensation grouting or soil nailing are more appropriate. If you have a building already showing distress, we recommend a site investigation first to determine the cause before considering PVDs.
