A common mistake among construction teams in Bendigo is assuming that standard penetration resistance alone can define foundation behaviour on the region's complex ground. The city sits on a mix of granitic bedrock, deep alluvial sequences along Bendigo Creek, and colluvial slopes from the surrounding hills. Relying solely on blow counts often leads to overestimation of bearing capacity and incorrect settlement predictions. The plate load test (PLT) directly measures the load–settlement response under controlled conditions, giving engineers a site-specific modulus of subgrade reaction and a realistic failure envelope. For shallow foundations and road pavements, this field test resolves the uncertainty that comes from indirect correlations.
PLT directly measures load–settlement response under controlled conditions, giving Bendigo engineers a site-specific modulus of subgrade reaction instead of relying on indirect correlations.
Methodology and scope
The plate load test in Bendigo follows AS 4678:2002 for earth-retaining structures and the general principles of AS 1726:2017 for geotechnical site investigations. The procedure is straightforward: a circular steel plate (typically 300 mm to 600 mm diameter) is seated on the prepared subgrade and loaded incrementally while settlement is recorded with dial gauges. The resulting stress–settlement curve yields two critical parameters — the bearing capacity and the modulus of subgrade reaction (k-value). In Bendigo's weathered granites, where shallow refusal is common, we often pair PLT with resistividad electrica SEV to map the depth of the weathered profile. On the alluvial flats near the city centre, where compressible clay layers alternate with sand lenses, combining PLT with a veleta de campo helps differentiate undrained shear strength from the composite k-value. This layered interpretation is essential for designing footings on variable ground.

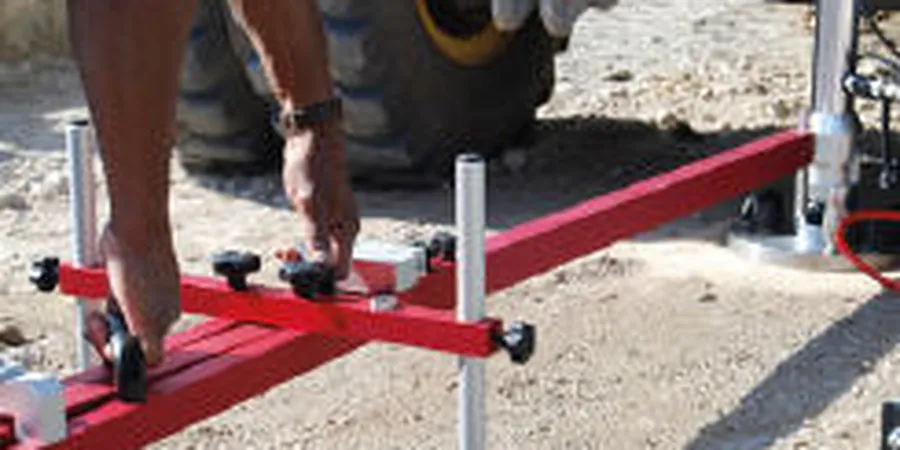

Technical reference image — Bendigo
Local considerations
In Bendigo, we often see projects where the plate load test is performed only at one location and then the result is extrapolated across the entire site. That is a significant risk when the subsurface varies from granitic bedrock to alluvial clays within 50 metres. A single PLT cannot capture the lateral variability in stiffness that occurs near old creek lines or on colluvial slopes. For residential subdivisions on the outskirts of town, missing a soft pocket can lead to differential settlements of 25 mm or more. The solution is to run a minimum of three PLTs per site — one on each dominant soil unit — and to correlate the results with clasificacion de suelos from nearby test pits.
300 mm – 600 mm (standard); 750 mm for pavement subgrades
Maximum applied load
Up to 200 kN (reaction frame) or 400 kN (anchored beam)
Measured parameters
Bearing capacity, modulus of subgrade reaction (k), initial tangent modulus
Settlement measurement
Dial gauges (0.01 mm resolution) or electronic LVDTs
Loading increments
5–8 increments, each held until settlement stabilises per AS 4678
Typical test depth
At foundation level or at 0.5 m below subgrade
Associated technical services
01
Standard PLT (300 mm plate)
For shallow foundations and slab subgrades. Delivers k-value and allowable bearing capacity. Suitable for residential and light commercial projects.
02
Large-area PLT (600–750 mm plate)
Designed for pavement design and heavy industrial slabs. The larger plate captures a representative soil volume, reducing scale effects in granular fills.
03
Cyclic PLT for dynamic loading
Repeated loading cycles simulate traffic or machine vibrations. Results help calibrate modulus degradation for road pavements and crane pads.
04
PLT with in-situ CBR correlation
Simultaneous CBR testing at the same location allows direct conversion between California Bearing Ratio and modulus of subgrade reaction for flexible pavement design.
Applicable standards
AS 4678:2002 — Earth-retaining structures (PLT for base verification), AS 1726:2017 — Geotechnical site investigations (field test procedure), AS 1289 — Bearing capacity of soil under static load
Frequently asked questions
How long does a plate load test take in Bendigo?
A standard PLT with a 300 mm plate takes 4 to 6 hours from setup to demobilisation, including loading increments and stabilisation time. Larger plates or cyclic sequences can extend to a full day.
What is the difference between PLT and a CBR test?
PLT measures the stress–settlement behaviour under a rigid plate and yields the modulus of subgrade reaction (k). CBR is a penetration test that gives a relative strength index used for pavement design. PLT is preferred for foundation design; CBR is standard for road subgrades.
Do you provide a certified report for building approval in Bendigo?
Yes. Every PLT report includes the load–settlement curve, calculated k-value, bearing capacity, and a statement of conformity with AS 4678. Our laboratory holds ISO 17025 accreditation, so the report is accepted by Bendigo City Council certifiers.
How much does a plate load test cost in Bendigo?
The typical cost for a standard PLT in Bendigo ranges between AU$1.420 and AU$1.750, including equipment mobilisation, on-site testing, and a certified report. Additional tests on the same site usually attract a lower per-test rate.
