Bendigo sits on a complex mix of alluvial flats and weathered bedrock from the Palaeozoic era. The wet winters here saturate the upper soil profile, which can soften already variable clays and silts. That is why every deep excavation design we handle starts with a thorough site investigation. We need to understand the ground stiffness and groundwater regime before any shoring system is specified. A common first step is a calicatas exploratorias to log the strata directly and retrieve samples for lab testing. Without that baseline data, assumptions about lateral earth pressures become guesses. And guesses lead to overdesign or, worse, collapse.
The real risk in Bendigo deep excavations is not the soil strength — it is the hidden legacy of its mining past.
Methodology and scope
Bendigo sits at roughly 220 metres above sea level, but its topography hides deep leads of old alluvial gold workings. These historical diggings create voids and loose backfill zones that surface geophysics alone cannot map reliably. Our design approach for deep excavations in Bendigo always integrates a phased investigation.
We start with boreholes to refusal or target depth, logging every change in material.
Standpipe piezometers measure the perched water tables that fluctuate with seasonal rain.
We run triaxial and direct shear tests on undisturbed samples to define strength parameters for analysis.
This sequence feeds directly into the shoring and bracing calculations. We also cross-reference historical mine plans when available. The goal is to model the excavation behaviour before the first bucket breaks ground.

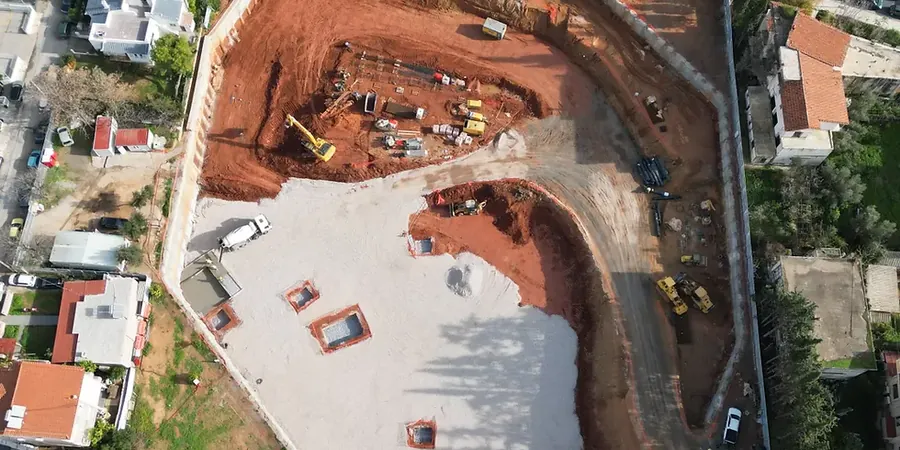

Technical reference image — Bendigo
Local considerations
Compare a site in the Bendigo CBD with one near the old Eaglehawk goldfields. The CBD site typically sits on stiff clay over mudstone, with a water table at 6 metres. A deep excavation there needs soldier piles and lagging or secant piles to hold the sides. At Eaglehawk, you might hit loose fill from old stopes at 4 metres, plus groundwater flowing through the disturbed zone. The shoring design must account for sudden loss of ground and higher hydrostatic loads. We have seen adjacent structures settle centimetres when those conditions were ignored. Our designs for Bendigo always include a contingency for encountering unexpected voids.
Continuous core drilling, SPT testing, and detailed logging to characterise the soil and rock profile at your Bendigo site.
02
Groundwater monitoring and analysis
Installation of standpipe piezometers and data loggers to measure seasonal water table fluctuations and pore pressure regimes.
03
Shoring and bracing design
Analysis and specification of soldier piles, sheet piles, secant walls, and internal bracing systems for temporary and permanent works.
04
Settlement and heave assessment
Consolidation and swelling tests on clay layers to predict ground movements during and after excavation in Bendigo's urban areas.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures, AS/NZS 1170.0:2002 Structural design actions, Australian Building Codes Board (NCC 2022) - Part B1 Structure
Frequently asked questions
What geotechnical parameters are most critical for deep excavation design in Bendigo?
The undrained shear strength (su) of the clay layers and the friction angle (phi') of any sand or gravel beds are critical. We also need the coefficient of lateral earth pressure (K0) to calculate active and passive pressures. Groundwater levels and the presence of old mine workings are equally important site-specific factors.
How do historical gold mines affect deep excavation design in Bendigo?
Historic mine shafts and stopes create zones of loose fill and potential voids. These are not always shown on surface maps. A targeted geophysical survey (e.g., microgravity or GPR) combined with careful borehole placement helps identify these hazards before design finalisation.
What is the typical shoring method for a 10-metre deep excavation in Bendigo CBD?
For a 10-metre excavation in stiff clay over mudstone, soldier piles with timber lagging or a secant pile wall are common. Internal bracing or ground anchors are used to resist lateral forces. Dewatering is often required if the excavation extends below the water table.
Does your design include monitoring requirements for adjacent buildings?
Yes. We specify survey targets, inclinometers, and piezometers to monitor ground and structural movements during excavation. Trigger levels are set based on allowable settlement criteria from AS 4678 and the adjacent building's foundation type.
