In Bendigo, the legacy of gold mining has left a complex subsurface of alluvial gravels, stiff clays, and abandoned mine workings. Designing a tunnel through these soft ground conditions demands a rigorous geotechnical analysis for soft soil tunnels that follows AS 1726:2017 for site investigation and AS 4678:2002 for earth-retaining structures. Our team combines continuous sampling with in-situ testing like [MASW profiles](/masw-vs30/) to map velocity contrasts across the city's variable geology, ensuring your design parameters reflect the actual ground stiffness rather than conservative assumptions that inflate costs.
Mapping abandoned mine workings with GPR before tunneling can prevent catastrophic ground loss and delays. It is not optional in Bendigo.
Methodology and scope
A common mistake we see in local tunneling projects is relying solely on borehole logs without assessing the spatial variability between them. A proper geotechnical analysis for soft soil tunnels in Bendigo integrates continuous profiling techniques. For example, we use georadar surveys to detect old stopes and voids that could cause sudden roof collapse, and we run permeability tests in the field to estimate groundwater inflows during excavation. Our approach covers:
Continuous core recovery and classification per AS 1726
In-situ vane shear and pressuremeter tests in clay units
Triaxial CU and UU tests on undisturbed samples
Numerical modeling of face stability and settlement troughs

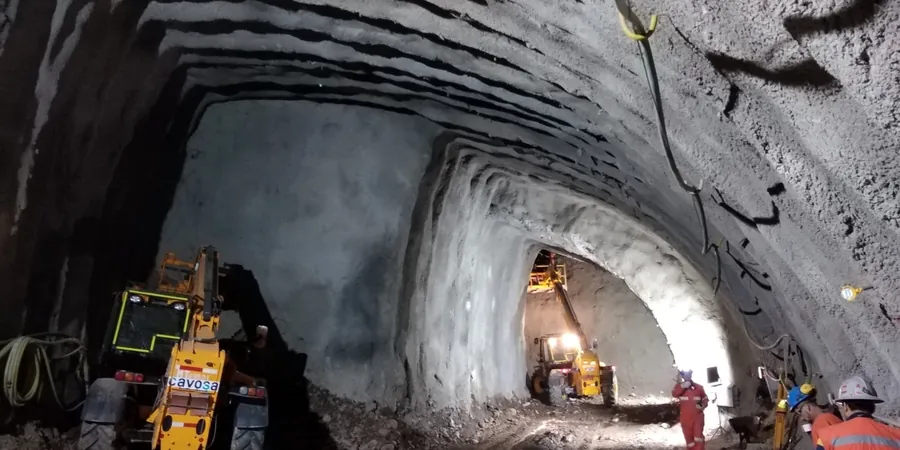

Technical reference image — Bendigo
Local considerations
Bendigo's climate swings from dry summers to wet winters, causing seasonal fluctuations in the water table that can destabilize tunnel headings. The presence of abandoned shafts and adits from historical mining introduces sudden loss zones that are invisible to standard drilling. A thorough geotechnical analysis for soft soil tunnels must include a hydrogeological model calibrated to local rainfall data and a cavity risk assessment using geophysics. Ignoring these factors can lead to face collapse, excessive surface settlement, or water ingress that halts progress.
Rotary core drilling, undisturbed tube sampling, and continuous SPT logging to characterize soil stratigraphy and strength profiles along the proposed alignment.
02
In-Situ Testing Program
Pressuremeter, vane shear, and permeability tests to obtain direct measurements of deformation modulus, undrained strength, and hydraulic conductivity for tunnel design.
03
Numerical Modeling and Risk Assessment
Finite element analysis of face stability, settlement troughs, and lining loads using PLAXIS 2D/3D, including probabilistic assessment of cavity collapse and groundwater inflow.
Applicable standards
AS 1726:2017 – Geotechnical site investigations, AS 4678:2002 – Earth-retaining structures, AS/NZS 1170.0:2002 – Structural design actions, AS 1289.6.3.1 – Standard test method for SPT
Frequently asked questions
What is the typical cost range for a geotechnical analysis for soft soil tunnels in Bendigo?
For a tunnel project in Bendigo, the cost of a thorough geotechnical analysis typically falls between AU$7.440 and AU$28.550, depending on the number of boreholes, depth of investigation, and the complexity of in-situ testing required.
How does historical mining affect tunnel design in Bendigo?
Abandoned mine workings create voids and backfilled zones with variable stiffness and potential for sudden collapse. A targeted geophysical survey, such as GPR or electrical resistivity, combined with careful probing, is essential to identify these hazards before finalizing the tunnel alignment.
What soil parameters are most critical for tunnel lining design in soft ground?
The undrained shear strength (cu), modulus of elasticity (E), and at-rest earth pressure coefficient (K₀) are key. These values determine lining loads, predicted settlements, and face support pressure. In Bendigo's stiff clays, obtaining undisturbed samples for triaxial testing is particularly important.
