A common mistake we see from contractors in Bendigo is assuming standard agricultural drainage will work for building foundations. The Goldfields region has a distinct combination of highly reactive clays and a fluctuating water table that changes with seasonal rainfall. If you design a perimeter drain without first characterizing the soil's permeability and shrink-swell potential, you risk differential movement that cracks slabs and blocks retaining walls. We have seen houses less than ten years old with foundation failures because the drainage design ignored the local clay mineralogy. A proper geotechnical drainage design starts with understanding how water actually behaves in the specific profile — not applying a one-size-fits-all solution from Melbourne.
In Bendigo, a drainage design based on assumed clay permeability can fail within two wet seasons — we test every horizon in-situ.
Methodology and scope
In Bendigo, we typically begin with a series of boreholes and test pits to log the soil stratigraphy. The equipment we use most often here is a track-mounted rig with continuous flight augers, paired with a hand auger for shallow clay zones. We measure in-situ permeability using falling-head tests in the boreholes; this gives us a direct K-value instead of relying on tables. For projects on the urban fringe, where cut-and-fill is common, we combine this with permeability field testing to capture lateral variation. The data feeds directly into our drainage models. We also run soil classification on every horizon to identify the plasticity index — a critical parameter for deciding whether a drainage blanket or a wick drain system is appropriate. Our lab holds ISO 17025 accreditation, so every number we hand you is defensible.

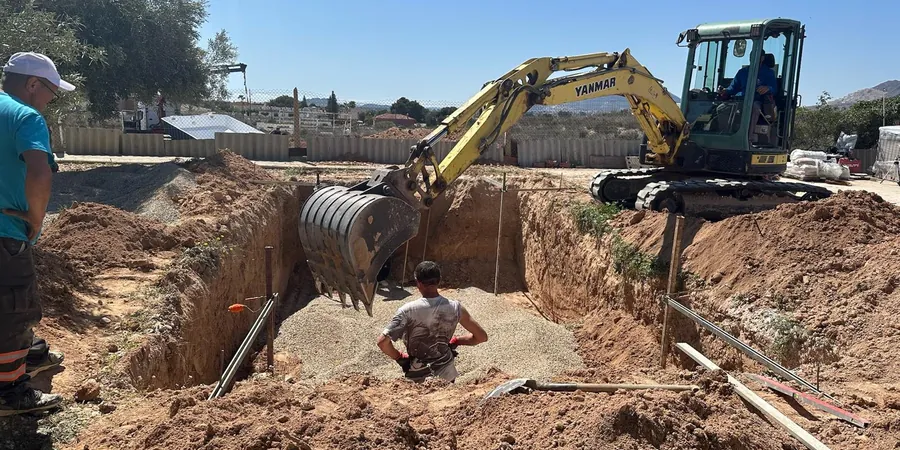

Technical reference image — Bendigo
Local considerations
Bendigo sits on the Bendigo Zone of the Lachlan Fold Belt, where the bedrock is mostly Ordovician turbidites overlain by colluvial and alluvial clays. The groundwater table here can rise more than 3 metres between autumn and spring, especially in the low-lying areas around Lake Weeroona and the Bendigo Creek corridor. If your geotechnical drainage design does not account for that seasonal fluctuation, you get saturated subgrades that lose bearing capacity. We have documented cases where improperly drained retaining walls in Epsom and Kangaroo Flat showed lateral displacement within two years. The reactive nature of the clay means any water trapped behind a structure exerts cyclic swelling pressure — the wall moves outward during wet periods and never fully recovers.
Design of granular drainage blankets and trench drains with geotextile filters, sized using field-measured K-values and the actual clay plasticity. We specify the gradation envelope and outlet spacing for your specific site.
02
Retaining Wall Drainage Systems
Weeping wall drains, chimney drains, and toe drains designed per AS 4678 to prevent hydrostatic pressure buildup behind walls. We calculate flow volumes using the local 1-in-20 year storm intensity and the soil's measured permeability.
03
Slope and Embankment Drainage
Horizontal drains, interceptor ditches, and French drains for cut slopes and fill embankments. We model the phreatic surface under seasonal recharge and size the system to keep the water table at least 1 metre below finished grade.
Why is Bendigo's clay different from other Victorian clays for drainage design?
Bendigo clays typically have a higher plasticity index (PI often above 40%) and a lower in-situ permeability than clays in the western basalt plains. This means water moves slowly through the matrix but the clay shrinks and swells significantly. A drainage design that works in Bacchus Marsh or Werribee will likely fail here because the flow rates are slower and the volume change is larger. We always measure PI and K from multiple depths before sizing any drainage layer.
How much does a geotechnical drainage design study cost in Bendigo?
For a standard residential site in Bendigo, the cost ranges between AU$1,360 and AU$3,430 depending on the number of boreholes, whether you need long-term groundwater monitoring, and the complexity of the drainage system (trench drains vs. blanket drains). Commercial or multi-lot subdivisions fall at the higher end due to additional testing.
What field tests are essential for drainage design in reactive clay?
The two non-negotiable tests are in-situ falling-head permeability (to get a real K-value in the clay layer) and Atterberg limits on disturbed samples from each horizon. We also recommend a minimum of one test pit per 500 m² to log desiccation cracks and root channels, which act as preferential flow paths. Without these, your design flow rate is just a guess.
Do I need a groundwater monitoring well for a small residential project?
Not always, but we recommend it if your site is within 200 metres of Bendigo Creek, Lake Weeroona, or any known drainage line. In those areas the seasonal water table rise can exceed 2 metres. A simple standpipe with a data logger for three months gives you the actual peak level, which lets us size the drain depth correctly. Without monitoring, you risk installing a drain that sits above the wet-season water table.
Can I use a standard agricultural drainage pipe for foundation drainage?
Agricultural slotted pipe (typically 65 mm or 80 mm) is not designed for the hydraulic loads and sediment control required in foundation drainage. We specify slotted PVC or HDPE pipe with a minimum diameter of 100 mm, wrapped in a geotextile filter sock that meets AS 3706 Class B. This prevents the reactive clay fines from migrating into the pipe and clogging it within a few years. Agricultural pipe will block in Bendigo clay within 12 to 18 months.
